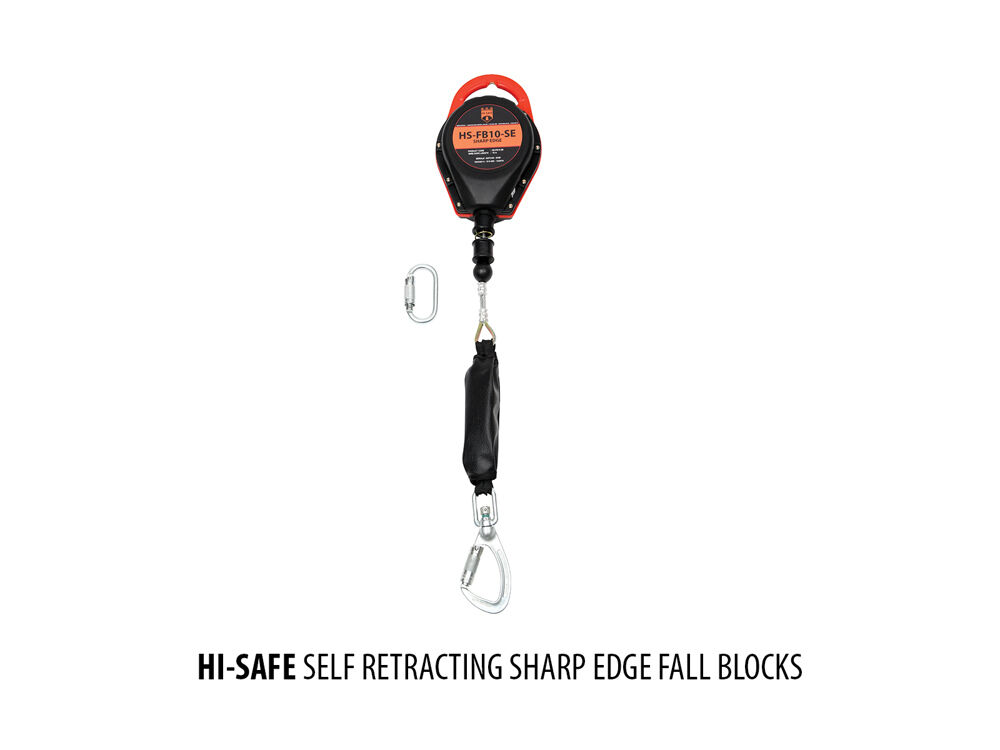

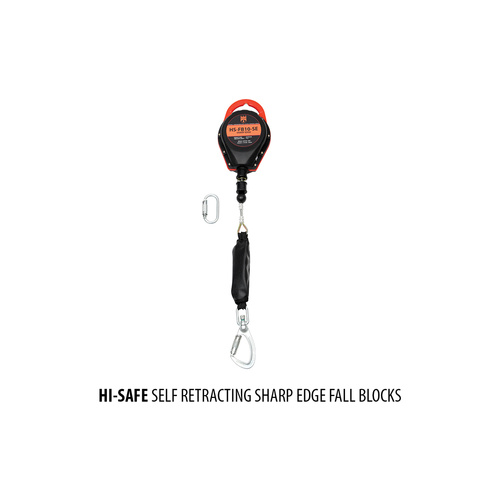

The Hi-Safe Self Retracting Fall Blocks are available in a range of standard or sharp edge rated models, all with 4.8 mm galvanized steel wire.

  • SHARP EDGE BLOCKS may be used both vertically or horizontally and are rated for sharp edges to radius of 0.5 mm


All Blocks Feature:

  • A comfortable carry handle that doubles as the attachment anchor point, a steel swivel triple action karabiner with integral fall indicator plus a separate steel triple action karabiner for anchorage options
  • All blocks reduce dynamic loads to less than 6kN in the event of a fall
  • All blocks are fully serviceable and made of proprietary high impact Polymer that is near indestructible

Code


Model


Max Length


Wire Dia.


Weight


 Max Weight
VerticalL /
Horizontal		 MBS


HS-FB3.5-SE

Fall Block Sharp Edge

3.5 m

4.8 mm

2.7 kg

 140 kg / 100 kg 12kN
HS-FB5-SE Fall Block Sharp Edge 5 m 4.8 mm 3.4 kg 140 kg / 100 kg 12kN
wHS-FB10-SE Fall Block Sharp Edge 10 m 4.8 mm 4.4 kg 140 kg / 100 kg 12kN
  • Sharp Edge Blocks conform to AS/NZS 1891.3, EN360:2002, G11#11.060
  • Standard Blocks conform to AS/NZS 1891.3, EN360:2002
  • Hardware conforms to ANSI Z359.12-2009

(HS-FB)

SKU HS-FB
Brand HiSafe
