The unique design of the BTS Shipping Container Anchor Post (SCAP) System allows the product to be constructed and set-up in different configurations to suit the type of work being done on top of a shipping container. The system can be set-up as a single person fall arrest anchor, two person fall restraint or fall arrest or as a complete perimeter barricade system.

PRODUCT FEATURES

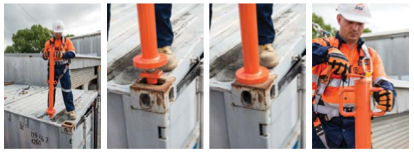

  •   Easy to install on top mount corner casting.

  •   Rated for two (2) person tie-off unit at 18 kN.

  •   Adjustable Fibre Rope Static Line c/w rope tensioner

    available.

  •   Can be set-up as a single Anchor Point, Static Line or

    as a complete perimeter protection.

  •   Maximum working load of 136kg per person when

    used as a limited free fall anchor point.

  •   Steel construction.

Before using the SCAP, the user needs to be equipped with appropriate PPE and a full body harness compliant to AS/NZS1891.1.

An SRL shall be attached to the SCAP personnel attachment point which gets attached to the harness of the user.

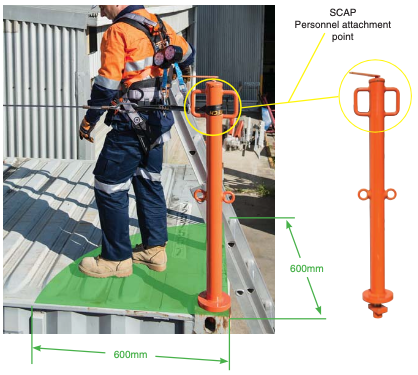

When working close to the edge of the container, the worker shall not be further than 600mm of the installed anchor point. This is the safe working zone to prevent a pendulum effect from occurring in case of a fall.

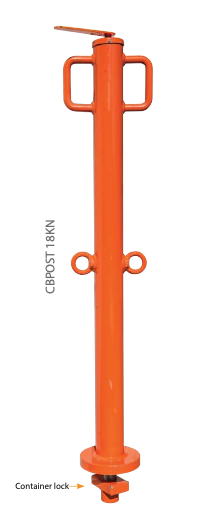

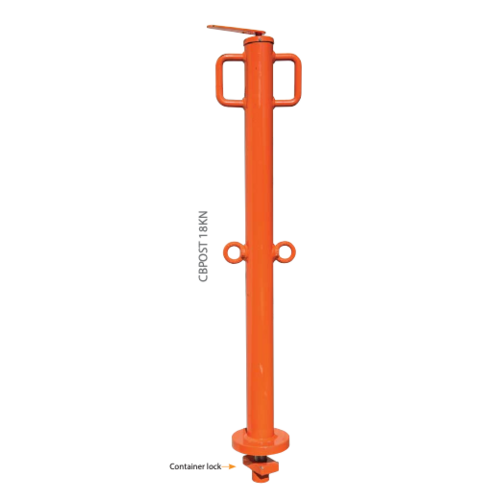

(CBPOST18KN)

SKU CBPOST18KN
Brand Beaver Technology Services
Shipping Weight 5.0000kg
